# Integrating the housing of an electrical flush-mounted box

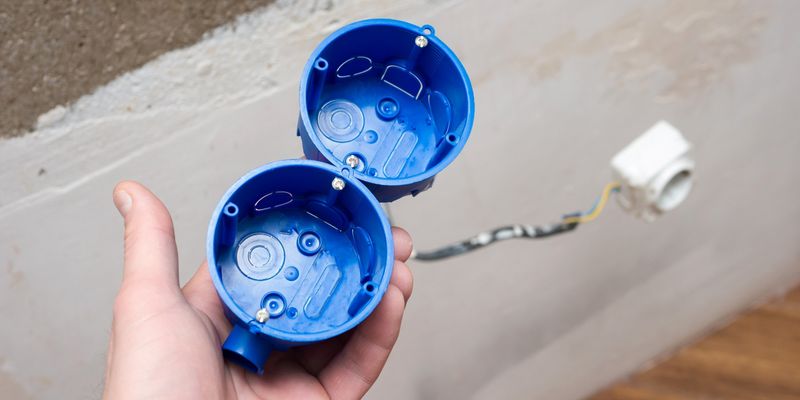

The integration of an electrical flush-mounted box is an essential step for any modern electrical installation, allowing cables to be secured and concealed in the wall for an aesthetic and tidy look. Recessed boxes are used to house outlets, switches, or connection devices and, by being built directly into the wall, they reduce the risk of accidental contact with wires, thus limiting electrical hazards.

However, this type of installation requires special precision, as an ill-fitting hole can lead to complications both in terms of the stability of the housing and the safety of the entire electrical system. In this article, we will discuss the detailed steps to prepare the wall, drill accurately, and install a flush mounting box using a suitable tool, the XT52112 carbide drill bit kit. With this equipment, it is possible to achieve clean, fast and safe drilling, even in difficult materials such as concrete or brick.

# Preparation steps before drilling

Before embarking on wall drilling to integrate a flush-mounted box, it is essential to prepare the location well and choose the right tools. This preparation minimizes errors and ensures an accurate result that complies with current electrical standards.

• Choose the location of the enclosure

The first step is to accurately determine where the housing will be recessed. Electrical standards generally impose minimum heights and specific distances to be respected for sockets and switches, especially in sensitive areas such as the kitchen or bathroom. For example, it is recommended to install sockets at a height of 30 cm from the ground and switches at a height of 110 cm. In the bathroom, additional precautions are necessary, with regulated areas to limit the risk of humidity. It is advisable to mark the exact location of the housing on the wall with a pencil to avoid mistakes when drilling. Also, make sure that no pipes, pipes or electrical wires are present behind the area where you will be drilling, using a metal detector if possible.

• Prepare the necessary tools

Once the location is determined, it's time to gather the tools. To make a flush mount housing you will need the following:

-    Material-Matched Drill Bit: The choice of drill bit is decisive for a clean drill that is adapted to the hardness of the wall material. The TIVOLY XT52112 is an ideal choice for this type of work, thanks to its robustness and efficient drilling ability in various materials, including concrete and cinder blocks.

-    Hammer drill or hole punch: Depending on the type of wall, a hammer drill may be sufficient for plaster or brick walls. For harder materials, such as concrete, it is recommended to use a rotary hammer, which offers more power and precision.

-    Other auxiliary tools: A tape measure, a pencil for markings, a level to ensure alignment, and safety gloves and goggles. This equipment is essential to work safely and avoid dust or material fragments.

• Prepare the work area

Area preparation is a step that simplifies the drilling and installation process. Clear the area of any furniture or items that may be damaged by dust or debris. You can also cover the floor and surrounding the furniture with a tarp or plastic to make cleaning easier. Finally, to limit dust during drilling, you can opt for vacuum cleaners or dust collection bags suitable for drills, which is particularly useful when working indoors. Once the space is prepared and the tools are at hand, you'll be ready to make a precise and clean hole for the housing installation.

# Drill into the wall to integrate the flush mount box

Drilling is the key step in properly integrating the housing of a flush-mounted box into the wall. Once the preparation is complete, it is time to proceed with the drilling, considering the specifics of the wall material and safety precautions. Here is a step-by-step guide to drilling optimally, with special attention to the use of the XT52112 product, a versatile and robust drill bit, ideal for this type of installation.

• Adapting the drilling technique to the material

The most common wall materials for electrical installations are brick, breeze blocks, plaster, and sometimes concrete. Each type of material requires a specific approach:

Plaster wall: plaster is relatively easy to drill, but it is also fragile. A standard drill is usually sufficient. Use the TIVOLY XT52112 to ensure a clean hole without cracking the wall. Work at medium speed to avoid damaging the cast.

Brick: Brick is denser than plaster and requires the use of a hammer drill, especially for old bricks that can be harder. The TIVOLY XT52112, specially designed for solid materials, is ideal for this job, as it minimizes vibrations while ensuring clean perforation. It is advisable to drill in several times, releasing the pressure to avoid splintering.

Breeze block: cinder block is a porous material that can sometimes crumble during drilling. To avoid this, start drilling at low speed to stabilize the drill bit, then gradually increase. The TIVOLY XT52112, with its robustness and adapted design, offers a good grip on this type of material, limiting splintering.

Concrete: Concrete is one of the hardest materials and often requires the use of a hole punch rather than a conventional drill. Choose a product designed to withstand the hardness of concrete without wearing out quickly, ensuring clean and fast drilling. Use a suitable impact velocity to penetrate the concrete without exerting excessive pressure, which could weaken the installation.

• Using the TIVOLY XT52112 for precise drilling

The TIVOLY XT52112 is characterized by its technical characteristics suitable for embedding work. Its coating and geometry ensure cutting efficiency, even in resistant materials. For best results, follow these steps :

-    Position the drill: Place the drill with the TIVOLY XT52112 aligned with the mark previously drawn for the housing. Be sure to maintain a right angle to the wall to avoid angled holes or uneven edges.

-    Progressive drilling: Start at low speed to anchor the bit without creating a misalignment. Then increase the speed gradually, maintaining constant pressure to prevent slippage. Depending on the depth required, you can make several passes to reach the right level, especially in thick walls.

-    Check the progress: Once the hole is well primed, check the drilling depth regularly to ensure that it matches the dimensions of the housing. The XT52112 is designed to prevent clogging by debris, but it is advisable to clear the drill bit between each step to ensure a clean drilling.

• Prepare the repointing mortar

Drilling walls for an electrical flush-mounted box, although common, must be done in accordance with safety rules. Wear protective gloves to prevent injury, as well as goggles to protect yourself from splinters and dust. If you are working in an area with hidden cables or pipes, make sure you have taken all the necessary precautions to avoid drilling pipes.

Finally, when drilling, pay attention to the sensations transmitted by the drill. If you feel unusual resistance or strong vibrations, release the pressure, as this could indicate the presence of an unexpected obstacle or a positioning problem.

Once the drilling is complete, all that remains is to move on to installing the housing in the newly created housing, ensuring that it fits perfectly and is ready for the next step of electrical connection.

# Ensuring a sustainable and compliant installation

Integrating an electrical recessed box into a wall requires precision, adapted tools and compliance with safety standards to obtain an installation that is both aesthetic and safe. By following a well-structured process, from preparation to drilling, each step runs optimally, limiting the risk of cracks or mismatches that could weaken the installation.

Using a quality drill bit ensures a clean drill, which is especially crucial for hard materials like brick or concrete. This type of equipment allows for precise work in various types of walls, providing a perfectly fitting housing to accommodate the enclosure. Thus, a well-executed recessed installation minimizes the risk of accidental contact with cables, optimizes space and contributes to better aesthetics of interior spaces.

By regularly maintaining the recessed housing and cables, you ensure the longevity and safety of your installation. These periodic checks help to identify any signs of wear or loosening and to preserve the integrity of your electrical system. With well-prepared work and regular inspections, your recessed installation will meet the requirements for comfort and safety for many years to come.
